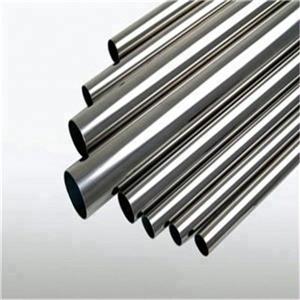

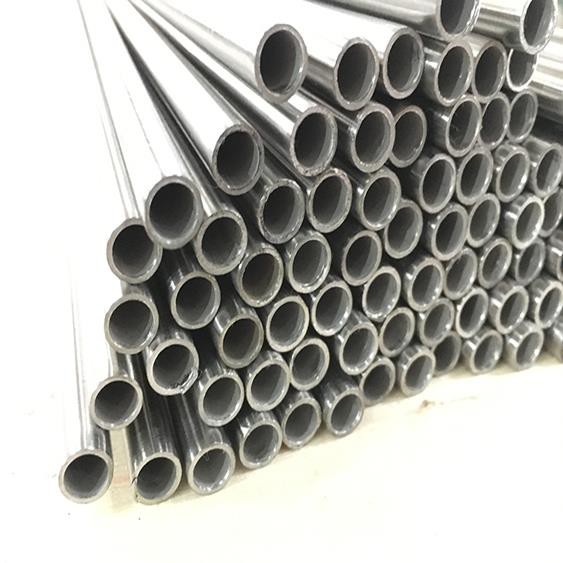

Stainless Steel Pipes/Tubes

Standard: ASTM, AISI, DIN, EN, GB, JIS, Stainless steel pipe

Model Number: Stainless steel pipe

Type: Welded

Steel Grade: 200 Series, 300 Series

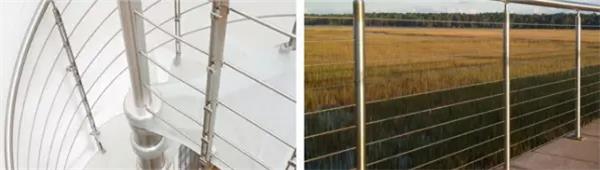

Application: Decoration

Certification: ISO

Welding Line Type: TIG

Material: 201, 304, 316

Product name: Stainless Steel Pipe

Polish: 600#400#320#240#180#

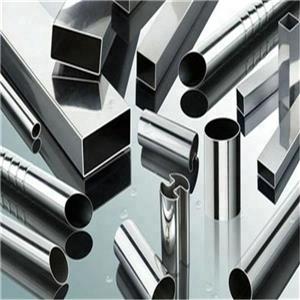

Shape: Round, Square, Rectangle

Length: Gernal 5.8m/6m

MOQ: 1

Payment terms: L/C, T/T

Color: As Requested

Supply Ability: 100000 Ton/Tons per Year

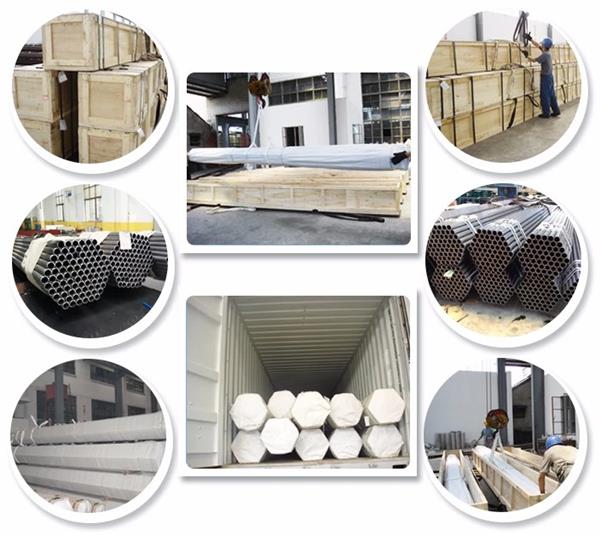

Packaging & Delivery

Packaging Details: Each piece in polybag and several pieces per bundle,or accoding to customer's request.

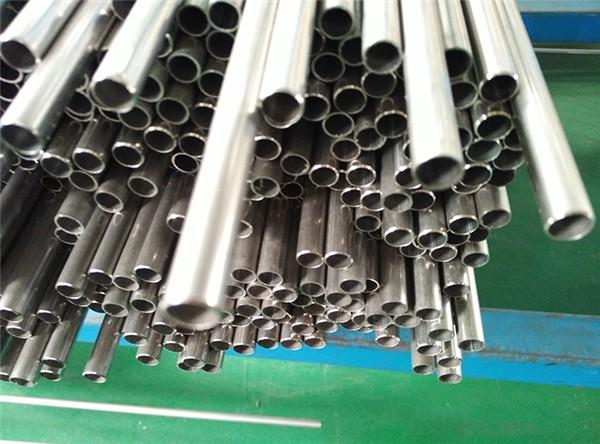

What Kind Of Coiled Tubing We Can Produce?

Unit: mm

OD 4.76	WT 0.51 0.71 0.89 1.24
OD 6	WT 1 1.5
OD 6.35	WT 0.51 0.71 0.89 1.24 1.65
OD 7.94	WT 0.71 0.89 1.24 1.65
OD 9.53	WT 0.71 0.89 1.24 1.65
OD 10	WT 1 1.5 2
OD 12	WT 1 1.5
OD 12.7	WT 0.71 0.89 1.24 1.65
OD 14	WT 1 1.5 2
OD 15.88	WT 0.71 0.89 1.24 1.65 2.11
OD 16	WT 1 1.5 2
OD 19.05	WT 1 1.24 1.65 2.11
OD 25.4	WT 1.24 1.65 2.11 2.54
OD 31.8	WT 1.24 1.65 2.11 2.54
OD 38.1	WT 1.24 1.65 2.11 2.54 3.05

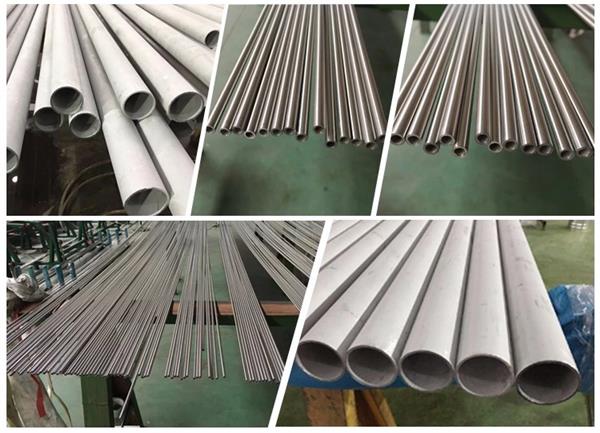

D4 / T3 Bright Annealed Stainless Steel Tubes ASTM A213 ASTM A269 EN10216-5 TC1

Bright annealed stainless steel tubes as perfollowing standard:

ASTM A213 ASTM A269 EN10216-5 TC-1

Tolerance: D4/T3 (±0.5%,±0.1 min)/(±10%,±0.2 min)

NDT Tests: Eddy Current or Hydraulic Test or UT

Heat treatment on tubes: Bright Annealed

Quality Assurance:

ISO 9001&PED 97/23/EC certificated with 100% traceability on all instrument tubes and material test reports (EN 10204/3.1B) accompany every shipment upon request.

Material	304: 0cr18ni9, 0cr17ni8 201: 1cr17mn6ni5n, 1cr13mn9ni1n 316: 0cr17ni12 or as customer's request
Size (round pipe)	9.5, 12.7, 15.9, 17, 18, 19.1, 20, 21, 22.2, 23, 25.4, 28, 318, 35, 60, 63.5, 73, 76.2, 88.9, 101.6, 114.3, 127, 133, 159, 168, 219 mm or customized
Size (square pipe)	10×10, 12×12, 18×18, 23×23, 38×38, 50×50, 70×70, 100×100, 20×10, 23×10, 24×12, 25×13, 36×23, 40×20, 50×20, 60×15, 75×45, 80×60, 95×45, 100×60, 150×100 mm or customized
Size (oval pipe)	30×15, 80×40 mm or customized
Thickness	0.24-3 mm
Length	6m or according to customer's request
Outer diameter	8-219mm
Tolerance	Outer diameter: ±0.2mm; Thickness: ±0.02mm; Length: ±0.5mm
Process method	Code drawn, annealed with nitrogen protection, ultrasonic, automatic shape, polished
Finishing	A: sanded B: 400#-600# mirror C: hairline brushed D: TIN titanlum E : HL brushed & mirror (two kinds of finishing for one pipe)

Chemical Composition
Material	c	Si	Mn	P	S	Cr	Ni
201	≤0.12	≤0.75	9.5-12.5	≤0.045	≤0.03	13-16	0.8-1.5
304	≤0.08	≤0.75	≤2.0	≤0.045	≤0.03	18-19	8-10
316	≤0.08	≤1.00	≤2.0	≤0.035	≤0.03	10-14	16.0-18.5
430	≤0.12	≤0.75	≤2.0	≤0.04	≤0.03	16-18	≤0.6

Application:

Instrument Tubing

Chromatography tubing

Hydraulic Tubing

High Pressure Tubing

Cleaned Tubing

Multi Core Tubing

Why Choose Bright Annealed Tube?

1. Superior Surface Finish

The traditional annealing: Open furnace---Oxygen atmosphere---form Scale, tarnish the material, For more than 12m tubes this method is hard to clean inner surface.

A special bright annealing: Closed furnace---Intert atmosphere use noble gases (Nitrogen and argon) Preventing Oxygen to contact with marterial ---Surface finish is clean, bright and precision, which is an excellent starting point for further process,like electro-polishing and mechanical polishing. For more than 12m tubes, this method is much cleaner smoother on both inner and outer surface.

2. Better Mechanical Property

The temperature of furnace can reach more than 1350℃, and the tolerance for setting and real temperature can be controlled whithin +/-2℃, which is impossible for the traditional annealing.

3.Perfect Inspection Method And Inspection Equipment

100%PMI test

100%Hydraulic test

100%Inner cleaned by sponge

100%Dimension test

100%Surface test

Quality of precision drawn tubing is same to precision rolling.

4. More Precision Dimension

Advanced cold drawn technology from Japan and Korean,Making the close dimension controls.
